Lainer EPICA WORKS FORK BETA RR

$6,199.00
Unit price per

Tax included. Shipping calculated at checkout.

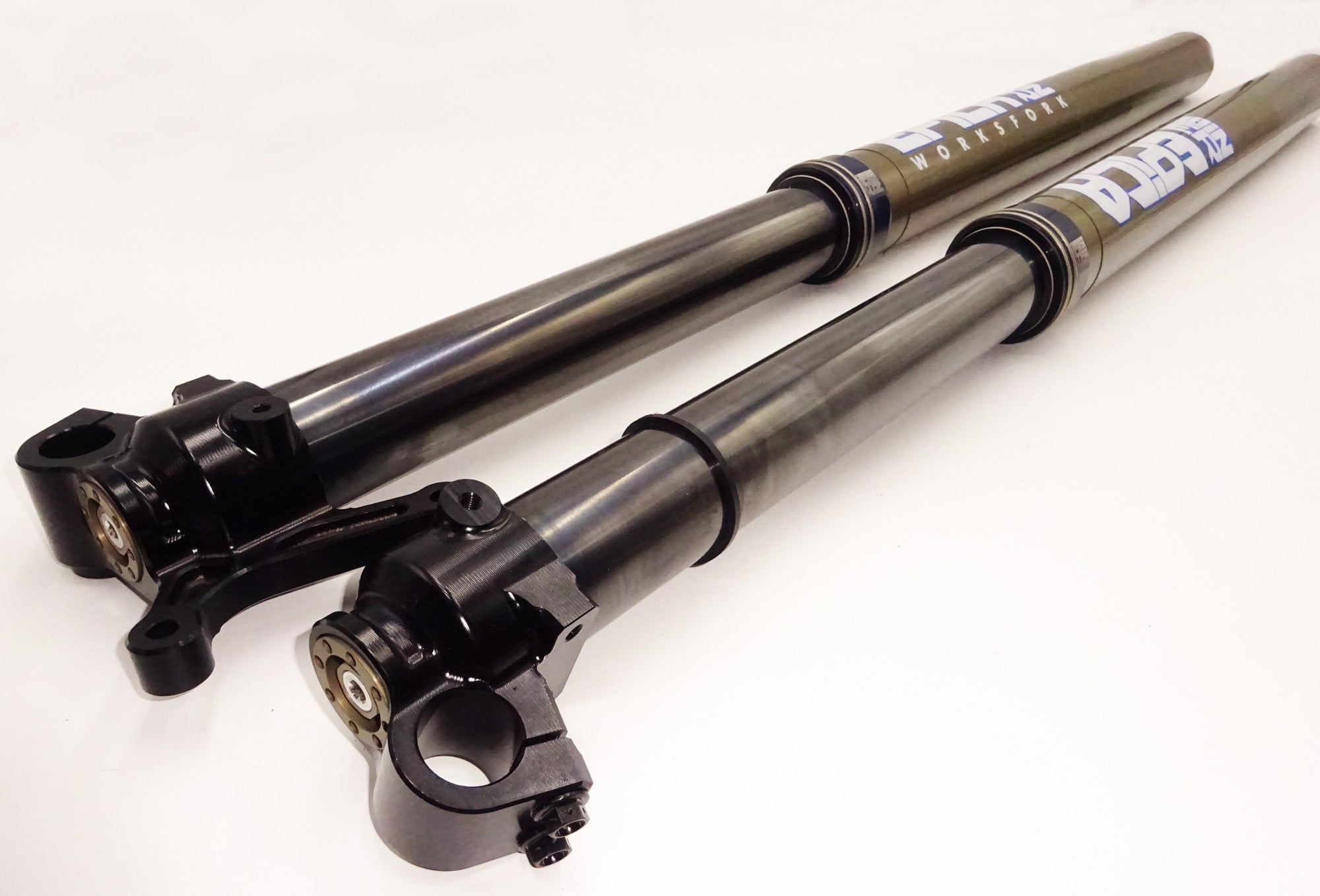

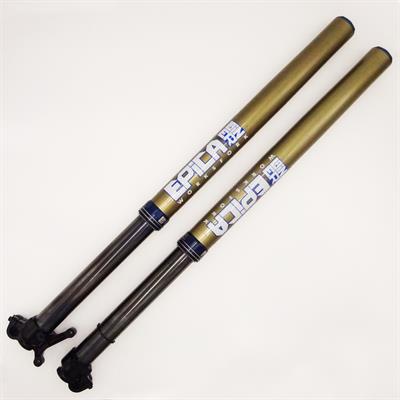

Complete front fork by Lainer Suspension Racing.
We put together all our best!

Inside: EPICA CARTRIDGE System (read below)

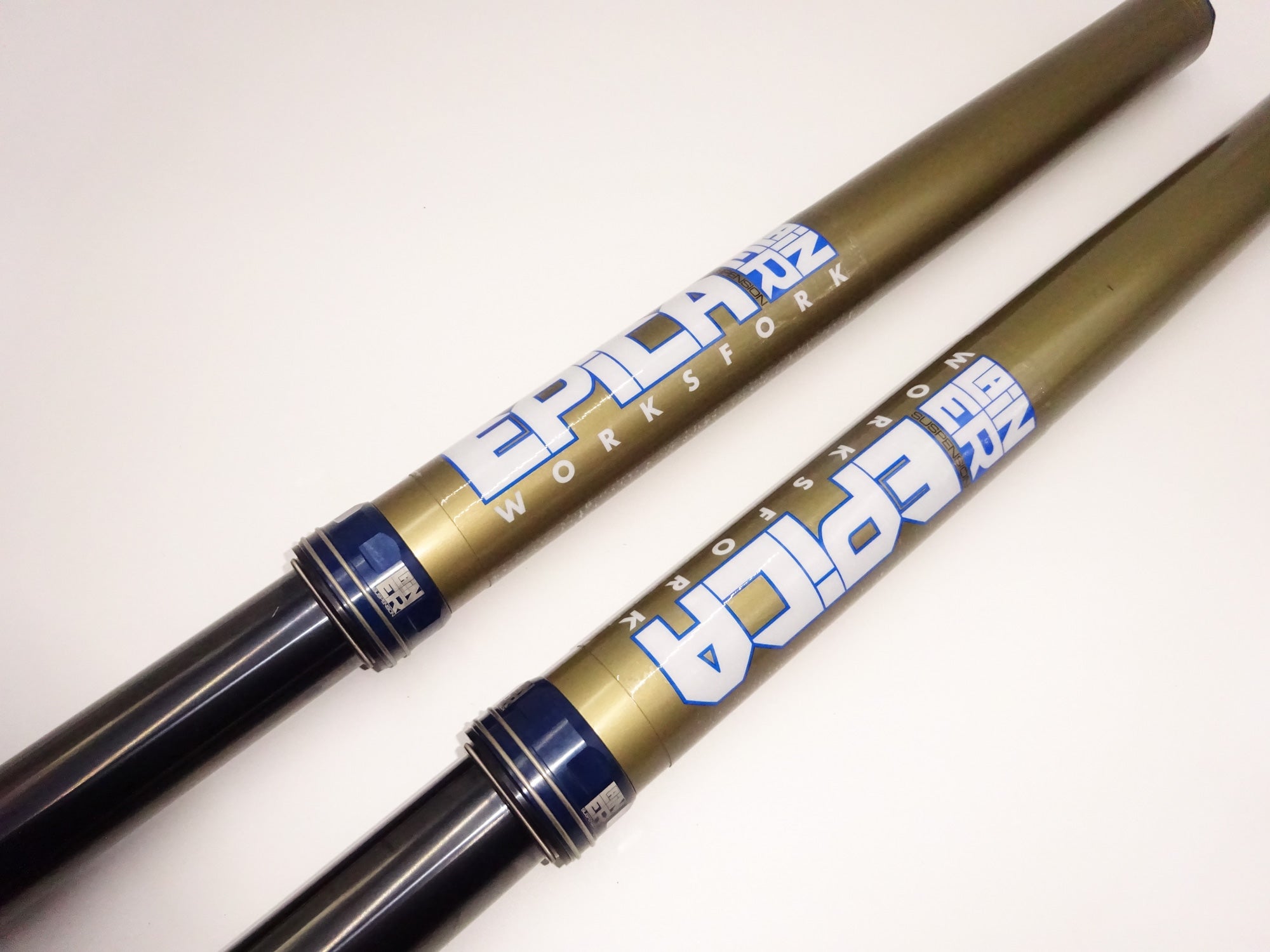

Outside: Aluminum CNC machined lugs, low friction hard anodized outer tubes, 48mm inner tubes with DLC black coating.

Application:

RR 2T 125 2020-2024
RR 2T 200 2020-2024
RR 2T 250/300 2020-2024
RR 4T 350/390/430/480 2020-2024

THE EPICA CARTRIDGE HAS BEEN DESIGNED TO PROVIDE THE BEST PERFORMANCE AND COMFORT BY PROVIDING MAXIMUM TUNABILITY

Our new EPICA Cartridge System is the culmination of years of experience, testing and development into a single project. The main goal for this project was to develop a highly tunable cartridge to allow riders to fine tune their forks in ways that was never before possible. Below is a break down of the key features of this innovative design.

External adjustments:

Compression damping 60 clicks of sensitive adjustments. Adjustment at top of cartridge.
Rebound damping 50 clicks of sensitive adjustments. Located at fork bottom.
External spring preload adjustment from 0 to 15mm. Easily adjusted with a 16mm socket at the fork bottom.

Innovative Features:
Technical Specs:

Bladder System
- Our bladder system prevents performance loss that can occur with standard internal spring systems (due to hydraulic support decay).
- Internal oil compensation with increased volume for better high speed response.
- Ability to tune bladder pressures via the side bleed spring.
EPICA cartridge incorporates Lainer’s Progressive Damping System (PDS) for increased hydraulic damping at the end stroke.
- PDS system has up to 12 different adjustments for the end stroke stiffness.
High Speed compression piston is reversible with a large range of settings.
Machined from premium 7075 and 6060 alloys and hard anodized.
Reversible High Speed compression piston outer diameter = 38 mm.
- Side A (Flat valve surface) 34mm OD shims for motocross and enduro.
- Side B (Convex valve surface) 32mm OD shims for supercross

Option to configure Low Speed Valve (LSV) on compression base valve.
Cartridge rod diameter = 14 mm (for an increased oil flow).
Rebound piston diameter = 25mm for better hydraulic control.
Compression high/low speed shims ID 12 mm.
Maximum travel = 310 mm.
Maximum shim diameter for Mid-Valve By-pass = 21 mm.
Ability to set Mid-Valve float clearance with the stack shims.
Mid-Valve/By-pass floating shim ID = 6 mm (for a soft response at high speed on the braking bumps).
Rebound shims ID = 6 mm (uses triangular mid-valve shims to avoid any oil turbulence on compression).
Low friction NBR bottom seal.
Ability to extend the cartridge through the nylon washers.

Please Note as these are custom built to order, delivery time is approx 4 weeks.
